Foam Gear Pump

Name: Foam Gear Pump
Brand: FLUID TECH SYSTEMS

Get a Price/Quote

MOQ : 01 Piece

Foam Gear Pump Specification

Caliber
Customizable

Max Suction
6 meter

Control System
Manual

Features
Robust construction, Wear-resistant gears, Leak-proof

Flow Rate
10-500 LPM

Speed
1440 RPM

Mounting Type
Foot Mounted

Inlet/Outlet
1 to 2 BSP

Discharge Pressure
High

Frequency
50 Hz

Head Size
Up to 40 Meter

Noise Level
Low

Theory
Rotary Pump

Working Temperature
Up to 100C

Voltage
220-380 V

Material
Stainless Steel / Cast Iron

Structure
Gear Pump

Power
0.5 - 10 HP

Standard
ISI

Fuel Type
Electric

Pressure
Up to 10 kg/cm

Usage
Foam Transfer

Application
Foam Liquid, Chemical, Cleaning Agent Transfer

Suction Type
Positive Displacement

Seals Type
Mechanical Seal

Priming
Self-priming

Pump Type
Foam Gear Pump

Capacity
10 to 500 LPH

Service Life
Long

Viscosity Handling
Up to 1,00,000 cst

Protection Class
IP55

Surface Finish
Painted/Polished

Portability
Stationary

Rotation Direction
Clockwise/Anticlockwise

Weight
Approx. 15-75 kg depending on model

Foam Gear Pump Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About Foam Gear Pump

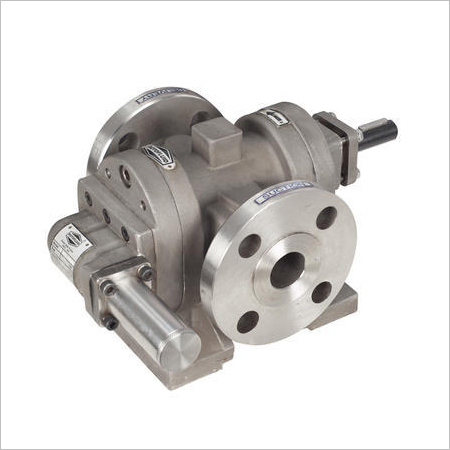

Fluid Tech Systems offers ROTOFLUID brand gear pump Model FTMS (SS Rotary Twin Gear Pump, Foam Fire Fighting Gear Pump) which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model FTMS having all stainless steel (SS-316) in four piece construction with investment cast. Due to four piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined SS-316 gear shaft that are nitrated to give longer life. Due to Double halical gear it prevent axial and side thrust which help to increase life & performance of pump. The coated dry running bush bearing, supported on bronze wearing plate, placed inside the pump casing, alternatively bronze wearing plate cum bushes can also be provided for thicker viscous liquid application. The stuffing box is fitted with GFO pack sealant with provision to fit mechanical shaft seal. These pumps provide with add-on type pressure relief valve. The jacketing construction should be selected to facilitate the heating of the pump by steam or thermic fluid etc.

These pumps having flange at the end of suction and delivery which are available in 1/2" to 6" size. These pumps can be operated up to pressure of 10 kg/cm² with 13 LPM to 1335 LPM flow capacity. These pumps are suitable for maximum temperature up to 200^oC and maximum viscosity up to 1,00,000 SSU.

Product details

Model	FTMS
Material	SS
Brand	Rotofluid
Motor Horsepower	3 HP
Motor Speed	2000 RPM
Discharge	50-100 LPH
Maximum Pressure	50-100 bar

Efficient Foam Transfer

Designed for transferring foam liquids with high viscosity, this gear pump delivers consistent, high-pressure flow. Its rotary, positive displacement design ensures reliable priming and uninterrupted operation. Customizable inlet and outlet sizes adapt to a variety of setups, making it suitable for processes where foam or chemical handling is critical.

Durable & Safe Construction

Featuring robust stainless steel or cast iron materials and a durable painted or polished surface, the Foam Gear Pump ensures longevity even in demanding environments. The IP55 enclosure provides ample protection against dust and water, while mechanical seals guarantee leak-proof performance during extended use.

Flexible Performance Parameters

With variable voltage input (220-380 V) and a wide range of flow rates (10-500 LPM), this pump accommodates industrial demands of different scales. Its head size (up to 40 meters) and high discharge pressure ensure effective movement of even viscous liquids, while low noise and manual control further enhance operational convenience.

FAQs of Foam Gear Pump:

Q: How do I choose the correct Foam Gear Pump model for my application?

A: Selection depends on your required flow rate, viscosity of the liquid, temperature, and pressure constraints. The pump is customizable in caliber, inlet/outlet size (1 to 2 BSP), and power (0.5 10 HP), allowing adaptation for processes such as foam liquid or chemical transfer. Consult with the supplier to match specifications to your process requirements.

Q: What benefits does the Foam Gear Pump offer over conventional pumps?

A: This pump is engineered for high viscosity materials (up to 100,000 cst), providing leak-proof and wear-resistant performance. The self-priming and positive displacement design ensure consistent flow and minimize downtime. Robust construction and mechanical seals prolong service life, while low noise and high efficiency enhance operational value.

Q: Where can this pump be installed and used effectively?

A: The Foam Gear Pump is stationary and primarily foot-mounted, suitable for industrial settings such as chemical, foam liquid, and cleaning agent transfer operations. Its IP55 protection class and rugged build allow it to perform reliably in harsh environments across manufacturing and processing plants.

Q: What process does the Foam Gear Pump use to transfer foam and chemicals?

A: Utilizing a rotary gear mechanism, the pump provides positive displacement, enabling efficient movement of viscous liquids. Self-priming capability ensures instant operation without manual intervention, while mechanical seals prevent leaks in the chemical process, making it ideal for high-demand industrial applications.

Q: How do I maintain and extend the service life of the Foam Gear Pump?

A: Regular maintenance involves checking for gear wear, inspecting mechanical seals, and ensuring proper lubrication. Keeping the housing clean and monitoring for leaks also helps maintain integrity. Adhering to recommended voltage, temperature, and pressure guidelines assures long-term reliability.

Q: Can the pump handle liquids at high temperature and pressure?

A: Yes, the Foam Gear Pump operates safely at working temperatures up to 100C and discharge pressures as high as 10 kg/cm. Its robust materials and IP55 protection ensure performance without compromise in high-demand scenarios.
