Monoblock Gear Oil Pump

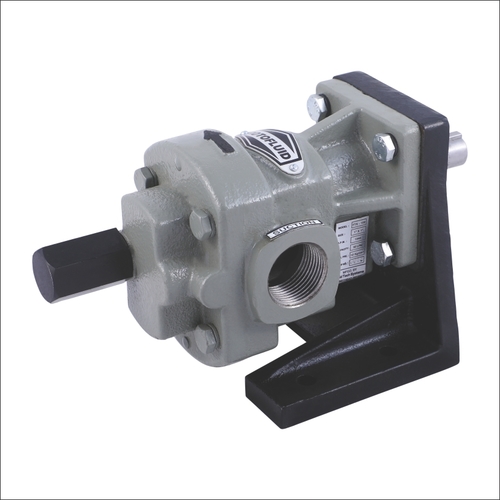

Name: Monoblock Gear Oil Pump
Brand: FLUID TECH SYSTEMS
Price: 2500.00 INR
Availability: InStock

Price 2500.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Monoblock Gear Oil Pump Specification

Features
Compact Design, Low Maintenance, Continuous Duty

Mounting Type
Horizontal

Speed
1440 RPM

Inlet/Outlet
1 BSP

Theory
Rotary Gear Pump

Noise Level
70 dB

Max Suction
5 meters

Working Temperature
-10C to 80C

Frequency
50 Hz

Control System
Manual

Flow Rate
18-35 LPM

Head Size
15-30 meters

Voltage
220-240V (Single Phase), 380-415V (Three Phase)

Discharge Pressure
Max. 6 Bar

Caliber
25 mm

Material
Cast Iron Body, Hardened Steel Gears

Structure
Monoblock

Power
0.5 HP to 2 HP

Standard
IS 8472

Fuel Type
Not Applicable (Oil Handling)

Pressure
3-6 Bar

Usage
Oil Transfer

Application
Industrial, Automotive, Hydraulic Systems

Suction Type
Positive Displacement

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Monoblock Gear Oil Pump

Capacity
18-35 LPM

Protection Class
IP44

Gear Type
Spur Type Precision Gears

Installation
Easy to Install and Maintain

Bearing Type
Ball Bearing

Insulation
Class B

Compatibility
Suitable for Lubricant Oils, Hydraulic Oils, Diesel

Body Finish
Corrosion Resistant Coating

Direction of Rotation
Clockwise (Standard)

Cooling
Natural Air Cooled

Weight
Approx. 12-18 kg

Monoblock Gear Oil Pump Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About Monoblock Gear Oil Pump

Fluid Tech Systems offer ROTOFLUID brand gear pump Model FTX (Gear Pump, Lubrication Oil Gear Pump) which is most efficient and economic range of flange and foot mounting type positive displacement rotary gear pump. Model FTX having Single helical shrink fitted gear pair and hardened and grind finished shaft. Ultra bronze sintered bushes ensured smooth running. It is perfectly designed and construction which increase life of pump and performance of pump.

The suction and delivery connections are available in 1/4" to 1 1/2" size. These pumps can be operated up to pressure of 10 kg/cm with 2.5 LPM to 125 LPM flow capacity. These pumps are designed to run at 1440 RPM and suitable liquid up to viscosity of 1,00,000 SSU and maximum temperature up to 200 C.
FTX Mono block pump

Simple and compact designs of Mono block pumps are available in this model.
Mono block version is very easy to portable one to another place and it does not required to align every time when coupled with electric motor. Mono block version save space and reduces down time.

High Performance Construction

Built with a monoblock cast iron body and precision-hardened steel gears, this pump ensures durability and long-lasting service, even in demanding environments. Its corrosion-resistant coating protects against harsh working conditions. Ball bearings and a mechanical seal provide smooth, leak-free operation, while the self-priming feature enhances start-up efficiency.

Versatile Applications

This oil pump is compatible with a range of fluids such as lubricant oils, hydraulic oils, and diesel, making it suitable for industrial, automotive, and hydraulic systems. Its compact design and horizontal mounting enable flexible installation. The natural air-cooled system and low noise operation allow for seamless integration into various setups.

Ease of Installation and Maintenance

Engineered for straightforward installation, the pump includes a positive displacement suction type for reliable priming and consistent flow. Maintenance is simplified due to its compact structure and minimal moving parts. The IP44 protection class and Class B insulation ensure operational safety and extended pump lifespan.

FAQs of Monoblock Gear Oil Pump:

Q: How is the Monoblock Gear Oil Pump installed and maintained?

A: The pump is designed for easy installation, typically mounted horizontally using the included fittings. Regular checks on bearings, seals, and the mechanical components are recommended. Its compact form and reduced moving parts make routine maintenance straightforward.

Q: What types of fluids can this pump handle?

A: This pump is suitable for transferring lubricant oils, hydraulic oils, and diesel. It is not intended for handling water, acids, or other corrosive liquids. Always check compatibility with the desired fluid before usage.

Q: When should the pump be used for optimal performance?

A: Operate the pump within its specified range: temperatures between -10C and 80C, pressures up to 6 bar, and flow rates of 1835 LPM. Using the pump within these limits ensures optimal performance and longevity.

Q: Where can this gear oil pump be utilized?

A: It can be used in various industrial, automotive, and hydraulic applications such as oil transfer, lubrication systems, and machinery servicing. Its rugged build makes it ideal for factories, workshops, and machinery rooms.

Q: What processes does this pump facilitate?

A: Primarily, it moves oils and compatible fluids via positive displacement. The self-priming action ensures quick start-up, while the spur gears deliver steady and efficient fluid flow. Its often used in lubrication, hydraulic operations, and fuel transfer (diesel only).

Q: How does the Monoblock Gear Oil Pump benefit users?

A: Users benefit from its energy-efficient operation, low maintenance needs, and long service life, thanks to high-quality materials and precision gears. Its corrosion-resistant construction and continuous duty design improve reliability in demanding environments.
