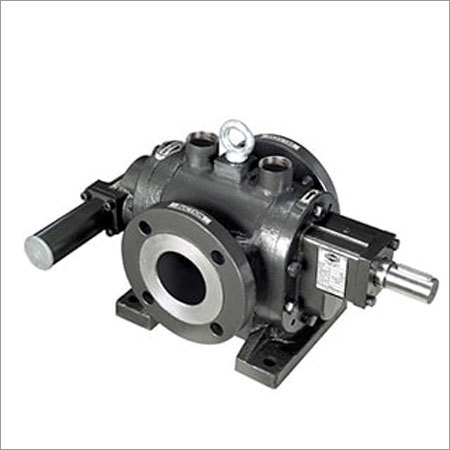

Rotary Twin Gear Pump (Jacketed)

Rotary Twin Gear Pump (Jacketed)
Rotary Twin Gear Pump (Jacketed)
Product Code : FTRN-FTRB-FTRX
Product Description
The Rotary Twin Gear Pump (Jacketed) are gear pump are heavy duty foot mounting type positive displacement rotary twin gear pump. They have three piece construction & are easily cleanable & maintainable. Apart from this these pumps have double helical refined gear & hardened grind finished shaft. The double helical gear prevent axial load & side thrust. The Rotary Twin Gear Pump (Jacketed) are having flange at the end of suction and delivery available in 1/2" to 6" size. Further they can be operated up to pressure of 10 kg/cm² with 8.30 LPM to 2083.00 LPM flow capacity. They are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200oC.

Features:
  • Modified tooth profile enhancelife.
  • Floating gear design for better load distribution.
  • Steam jacket available.
  • Low leakage path by & improve volumetric efficiency.

Application:
  • Power plant, steel plant
  • Cement plant, bitumen plant
  • Petroleum industries & refineries.
  • Pumping station
