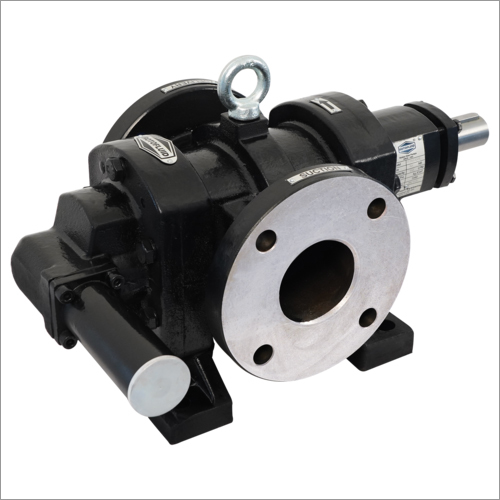

Rotary Twin Gear Pump (Standard)

Rotary Twin Gear Pump (Standard)
Rotary Twin Gear Pump (Standard)
Product Code : FTRN-FTRB-FTRX
Product Description
The Rotary Twin Gear Pump (Standard) is a heavy duty foot mounting type positive displacement is rotary twin gear pump. They have three piece construction & can be easily cleanable and maintainable. Apart from this, these pumps have double helical refined gear and hardened grind finished shaft. The double helical gear prevent axial load & side thrust. The Rotary Twin Gear Pump (Standard) have flange at the end of suction and delivery available in 1/2" to 6" size. These pumps are operated up to pressure of 10 kg/cm² with 8.30 LPM to 2083.00 LPM flow capacity. Further they are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200oC.

Features :
  • Floating gear design ensures uniform load distribution.
  • Optionally steam jacket available.
  • Double helical gear design prevent axial load.
  • Shorter bearing span reduces bending effect.


Application :

  • Petroleum industries.
  • Refineries.
  • Pumping station.
  • Loading and unloading of liquid
