Food Oil Pumps

Name: Food Oil Pumps
Brand: FLUID TECH SYSTEMS

Get a Price/Quote

MOQ : 01 Piece

Food Oil Pumps Specification

Max Suction
8 m

Frequency
50/60 Hz

Theory
Centrifugal Pump

Working Temperature
-10C to 80C

Head Size
10-35 m

Speed
2800 rpm

Mounting Type
Horizontal

Flow Rate
20-40 L/min

Inlet/Outlet
1/1 (25mm/25mm)

Discharge Pressure
Max 3.5 bar

Noise Level
70 dB

Features
Hygienic design, Corrosion resistant, Easy disassembly

Voltage
220V / 380V

Caliber
25 mm

Control System
Manual/Automatic

Material
Stainless Steel 304

Structure
Single-stage

Power
0.75 kW to 2.2 kW

Standard
ISO 9001

Fuel Type
Electric

Pressure
1.5-3.5 bar

Usage
Food Oil Transfer

Application
Food Processing, Edible Oil Plants

Suction Type
Positive Suction

Seals Type
Mechanical Seal

Priming
Self-priming

Pump Type
Food Oil Pump

Capacity
1200-2400 L/hr

Maximum Liquid Temperature
80°C

Cleaning Method
CIP (Clean-in-Place) compatible

Weight
18-35 kg

Suitable Liquid
Vegetable oil, Edible oil, Ghee, Liquid food

Connection Type
Threaded / Flanged

Protection Class
IP55

Minimum Liquid Temperature
-10°C

Drive Type
Electric Motor Driven

Priming Type
Self-priming

Impeller Type
Open / Semi-open

Housing Material
Stainless Steel

Food Oil Pumps Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About Food Oil Pumps

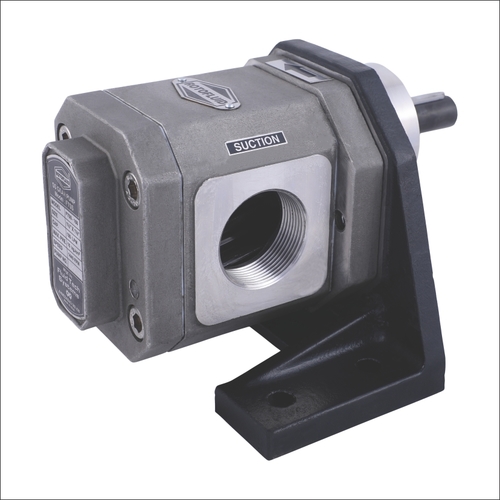

Fluid Tech Systems offer ROTOFLUID brand gear pump Model FTSS (SS Rotary Gear Pump) which is self priming, foot mounting type positive displacement rotary gear pump. Model FTSS having all Stainless Steel (SS-316) in three piece construction with investment cast.Due to three piece construction, it can be easily cleanable and maintainable that is why it is highly used in all kind of food industries. These pumps have SS-316 Gear and shaft that are nitrated to give long life and trouble free performance. The shaft is supported on self lubricating type Ptfe coated Bushes and the sealing is done with Ptfe based GFO pack sealant which gives zero leakage. The right angle mounting brackets facilitates foot mounting of the pump on base plate with Electric Motor of appropriate ratings. These pumps have sturdy design and construction for long trouble free service.

The suction and delivery connection are available in 1/4" to 2 ½" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.33 LPM to 300 LPM flow capacity and has suction lift of 1m to 5m at rated speed of 1440 RPM. These pumps are designed up to maximum Viscosity to 1,00,000 SSU and maximum temperature up to 200^oC.

Product details

Frequency	50Hz
Brand	Rotofluid
Model	FTSS
Material	MS
Voltage	220V

Hygienic and Durable Design

Manufactured from Stainless Steel 304, these food oil pumps are tailored to meet food industry standards, providing excellent resistance to corrosion and simplifying cleaning. The open or semi-open impeller enables efficient handling of viscous and particulate-laden liquids, while CIP compatibility ensures easy maintenance and hygiene compliance.

Optimal Performance for Food Processing

With a self-priming mechanism, electric drive, and powerful flow rates (12002400 L/hr), these pumps support seamless transfer of oils and liquid foods. The pumps are engineered to operate within a wide temperature range and offer positive suction up to 8 meters, making them suitable for diverse operational setups in edible oil production and food processing plants.

FAQs of Food Oil Pumps:

Q: How does the IP55 protection contribute to the pumps reliability in food processing environments?

A: The IP55 protection rating ensures the pumps enclosure resists water jets and dust ingress, making it robust for demanding food industry environments and protecting internal components to ensure continuous, hygienic operation.

Q: What liquids can this food oil pump safely transfer?

A: This pump is engineered for transferring a range of liquids including vegetable oil, edible oils, ghee, and other liquid foods, making it highly versatile for use in food processing and edible oil plants.

Q: When should I use the Clean-in-Place (CIP) system with this pump?

A: CIP should be used regularly as part of routine cleaning schedules, especially after processing different liquids or when transitioning between product batches, to ensure optimal sanitation and prevent contamination.

Q: Where is the ideal installation setting for this food oil pump?

A: This pump is best installed in food processing facilities, edible oil plants, or similar environments where hygiene and reliable liquid transfer are essential. Its horizontal mounting and compact design allow flexible placement.

Q: What is the process for maintaining this oil pump?

A: Maintenance involves regular inspection for wear, routine CIP cleaning, checking mechanical seals, and ensuring the electric motor and connections are in optimal condition. Its easy-disassembly design simplifies all service procedures.

Q: How does the pumps self-priming feature benefit operational efficiency?

A: Self-priming allows the pump to automatically evacuate air and begin fluid movement without manual priming, enabling quick start-up and reducing downtime, which is critical in high-paced food production environments.

Q: What are the advantages of using a stainless steel housing in food oil pumps?

A: Stainless steel housing offers excellent corrosion resistance, durability, and hygieneessential for food contact equipment as it resists contamination, withstands aggressive cleaning agents, and retains structural integrity over time.
