Name: PD Rotary Pumps
Brand: FLUID TECH SYSTEMS

Get a Price/Quote

MOQ : 01 Piece

PD Rotary Pumps Specification

Discharge Pressure
Up to 7 bar

Voltage
220V / 415V

Max Suction
6 meters

Flow Rate
25 to 300 LPM

Caliber
Suitably Structured

Theory
Rotary Pump

Noise Level
Below 70 dB(A)

Head Size
15 to 70 meters

Control System
Manual / Optional Automatic

Frequency
50 Hz / 60 Hz

Inlet/Outlet
25mm to 100mm

Working Temperature
-10C to +80C

Speed
960 to 2900 RPM

Features
Corrosion Resistant, Easy Maintenance, High Efficiency

Mounting Type
Base Plate / Foot Mounted

Material
Cast Iron / Stainless Steel

Structure
Horizontal / Foot Mounted

Power
0.37 kW to 7.5 kW

Standard
ISO 9001:2015

Pressure
Max 7 bar

Usage
Industrial Oil and Liquid Transfer

Application
Chemical, Petroleum, Paint, and Food Industry

Suction Type
Positive Displacement

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Rotary Vane / Gear / Lobe

Capacity
Up to 18 m/hr

Special Options
Heating Jacket, By-Pass Valve, Explosion Proof Motor

Accessories
Couplings, Base Plate, Motor

Direction of Rotation
Clockwise or Counterclockwise

Impeller Type
Rotary

Color
Blue / Customized

Package Type
Wooden Box

Surface Finished
Anti-Corrosion Coated

Protection Class
IP55

Viscosity Range
Up to 100,000 cSt

Operational Mode
Continuous Duty

Port Connection
Flanged / Threaded

PD Rotary Pumps Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About PD Rotary Pumps

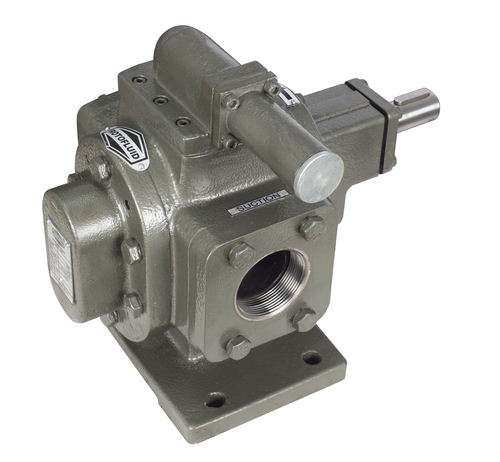

Fluid Tech Systems offer ROTOFLUID brand gear pump Model FTNX/FTBX (Viscous Liquid Gear Pump - External Gear Pump - Positive Displacement Pump) which is heavy duty flange and foot mounting type positive displacement rotary gear pump. Model FTNX/FTBX is modified version of Model FTRN/FTRB to achieve high pressure. These pumps having doubled helical finished gears and hardened & ground shafts. Due to double helical gear it prevent axial load and side thrust which help to increase life and performance of pump. Model FTBX is a bush bearing type pump which can be used for viscous liquid having sufficient lubricating value for intermittent duty; however for continuous duty pump have needle roller bearing in Model FTNX and it will be selected for liquid having low viscosity, power lubricating values.

In these pumps size 1/2" to 2 1/2" are provided with thread at end of suction & delivery and they are available with foot or flange mounting, But in size 3" to 4" are provided with flange at the end of suction & delivery and they are available with foot mounting only. These pumps can be operated up to pressure of 20 kg/cm² with 5.0 LPM to 900 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200^oC.

Product details

Brand	ROTOFLUID
Model Number/Name	FT
Head	10 Bar
Fuel	any viscous liquid

Flexible Impeller Types & Mounting Options

Rotary pumps are available in vane, gear, or lobe impeller designs, ensuring optimal performance for diverse liquid transfer needs. The base plate and foot-mounted structure provides stability during operation, while flange or threaded connections allow for straightforward installation in existing systems.

Adaptable Accessories and Specialized Features

You can enhance your rotary pump setup with accessories such as couplings, base plates, motors, and control systems. Optional features like heating jackets, by-pass valves, and explosion-proof motors ensure safe, efficient operation even in demanding industrial environments, covering temperatures from -10C to +80C.

Advanced Material & Corrosion Resistance

Manufactured in cast iron or stainless steel and coated for anti-corrosion, these pumps withstand harsh industrial chemicals and processes. Their surface finish allows for long-term durability and minimizes maintenance requirements, helping your process stay efficient and cost-effective.

FAQs of PD Rotary Pumps:

Q: How does the direction of rotation affect PD Rotary Pump operation?

A: The direction of rotation, whether clockwise or counterclockwise, determines the fluid flow direction within the pump. Choosing the correct rotation ensures efficient pumping and proper integration with your systems piping layout.

Q: What is the maximum viscosity that PD Rotary Pumps can handle?

A: These pumps are capable of transferring fluids with viscosities up to 100,000 cSt, making them suitable for heavy oils, resins, and viscous chemicals commonly encountered in industrial applications.

Q: When should a heating jacket or by-pass valve be selected?

A: A heating jacket is ideal for maintaining fluid temperature during transfer, particularly in processes using viscous or temperature-sensitive materials. The by-pass valve should be used when regulated pressure and safety flow control are required to protect the pump and downstream equipment.

Q: Where are these PD Rotary Pumps commonly installed?

A: PD Rotary Pumps are widely installed in chemical plants, petroleum refineries, paint manufacturing units, and food processing industries throughout India, where continuous duty and robust efficiency are essential.

Q: What are the advantages of an anti-corrosion coated surface?

A: The anti-corrosion coating protects the pump from chemical attack and environmental damage, extending its service life and reducing maintenance costs. This makes the pump reliable for transferring aggressive or corrosive liquids.

Q: How does self-priming benefit pump start-up and operation?

A: Self-priming enables the pump to draw fluid into itself automatically at start-up, reducing manual intervention and ensuring quick, hassle-free operation, especially when handling viscous or challenging fluids.

Q: What maintenance processes contribute to high pump efficiency?

A: Routine inspections, timely seal replacements, and systematic cleaning help maintain pump efficiency. The design facilitates easy maintenance, minimizing downtime and keeping industrial operations running smoothly.
