Twin Gear Pump

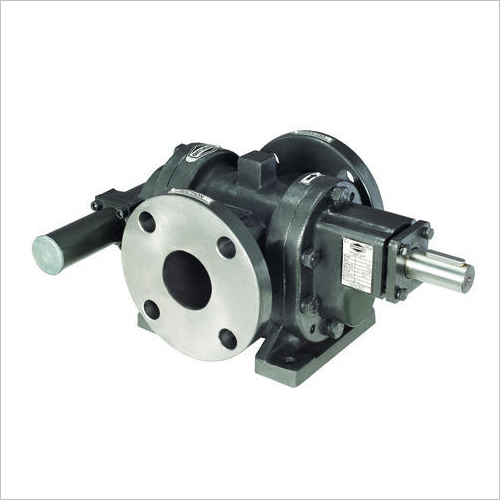

Name: Twin Gear Pump
Brand: FLUID TECH SYSTEMS

Get a Price/Quote

MOQ : 01 Piece

Twin Gear Pump Specification

Theory
Twin Gear Displacement Pump

Inlet/Outlet
1 to 6 BSP / Flanged

Fuel Tank Capacity
Not Applicable for Electric Motor Driven

Head Size
Up to 50 meters

Frequency
50 Hz / 60 Hz

Control System
Manual / Automatic

Speed
500 to 1450 RPM

Max Suction
Up to 8 meters

Flow Rate
10 LPM to 1500 LPM

Noise Level
Low

Caliber
25 mm to 150 mm

Working Temperature
-10C to 80C

Mounting Type
Base Plate Mounted

Discharge Pressure
Up to 10 kg/cm

Features
Rugged Construction, Low Maintenance, Smooth Operation, Efficient Handling of Viscous Liquids

Voltage
220V / 380V

Material
Cast Iron / Stainless Steel / Alloy Steel

Structure
Horizontal / Foot Mounted

Power
0.5 HP to 60 HP

Standard
ISO / CE

Fuel Type
Electric Motor / Diesel Engine Driven

Pressure
Up to 10 bar

Usage
Transfer of Petroleum, Oil, Viscous Liquids

Application
Chemical, Petrochemical, Food, Oil, Pharmaceutical, Paint, Distillery

Suction Type
Positive Suction

Seals Type
Mechanical Seal / Gland Packing

Priming
Self-priming

Pump Type
Rotary Twin Gear Pump

Capacity
0.5 m/hr to 90 m/hr

Shaft Material
Alloy Steel / Stainless Steel

Bearings
Heavy-duty, Antifriction Type

Viscosity Range
Up to 1,00,000 SSU

Corrosion Resistance
High, as per material selection

Lubrication
Self-lubricated or External

Surface Finish
Painted / Coated for Corrosion Resistance

Port Size
Standard and Custom Available

Max Solid Handling
Non-slurry, Clean Fluids Only

Direction of Rotation
Clockwise or Anti-clockwise

Coupling
Flexible Coupling or Direct Coupling

Twin Gear Pump Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About Twin Gear Pump

Fluid Tech Systems offer ROTOFLUID brand gear pump Model FTRN/FTRB/FTRX (Rotary Twin Gear Pump - Molasses Gear Pump - Positive Displacement Gear Pump - External Gear Pump) Which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model FTRN/FTRB/FTRX having three piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which is help to increase life and performance of pump.

These pumps are having flange at the end of suction and delivery which are available in 1/2" to 6" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.30 LPM to 2083.00 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200^oC.

Pump Selection

Model FTRN/FTRB : The self lubricated needle roller bearing type Model FTRN used for clean viscous liquid having sufficient lubricating property such as clean lube oil, Gear oil, Animal oil, Fish oil, Hydraulic oil, Honey, Vegetable oil, SAE lubricating oil for continues duty, However for Intermittent duty Bush Bearing type pump Model FTRB used.

Model FTRX : This Model independent lubricated needle roller bearing type pump is suitable for handling of Crude oil, Dirty lube oil, HSD, Kerosene, LDO, Paints, Varnish, Wood Pulp, Liquid which have poor lubricant value.

Model FTRBJ : This Model should be selected for liquid which tends to solidify at room temperature such as Bitumen, Furnace oil, Asphalt, Tar, Starch, Molasses, Naptha, RFO, Silicate, Wax, Soap solution. Because This model have jacketing construction facilitate the heating the pump by steam or thermic fluid.

Product details

Voltage	220V
Brand	Rotofluid
Material	MS
Model	FTRN/FTRB/FTRX
Frequency	50Hz

Versatile Applications Across Industries

Designed for chemical, petrochemical, oil, food, paint, pharmaceutical, and distillery sectors, the Twin Gear Pump efficiently manages various viscous liquids. Its capabilities suit both manual and automated control systems, facilitating reliable and smooth operations. With horizontal, foot-mounted structure and flexible coupling options, it integrates seamlessly into a wide range of industrial environments.

Advanced Engineering for Reliable Performance

Built with alloy steel or stainless steel shaft and heavy-duty antifriction bearings, this pump ensures durability and extended service life. It operates at a low noise level, supports positive suction up to 8 meters, and maintains excellent priming. The corrosion-resistant surface finish further enhances its suitability for harsh environments, reducing maintenance needs.

FAQs of Twin Gear Pump:

Q: How does the Twin Gear Pump handle different directions of rotation?

A: The pump can operate in either clockwise or anti-clockwise direction, making it adaptable to varied installation requirements. The direction is selected during setup based on system flow needs.

Q: What is the maximum viscosity the Twin Gear Pump can manage?

A: It efficiently transfers fluids up to 100,000 SSU, making it ideal for highly viscous or thick liquids such as petroleum, oils, or viscous industrial chemicals.

Q: Where is the Twin Gear Pump commonly used?

A: This pump is versatile and finds application in chemical, petrochemical, food, oil, pharmaceutical, paint, and distillery industries, as well as other processes requiring the transfer of clean, non-slurry fluids.

Q: What type of lubrication does the Twin Gear Pump require?

A: The pump can be self-lubricated or externally lubricated depending on operating conditions and preferences, ensuring smooth and efficient operation under varying loads and fluid types.

Q: How is corrosion resistance achieved in this pump?

A: Corrosion resistance depends on the selected materialscast iron, alloy steel, or stainless steeland surface finish options such as painting or special coatings, which are designed to withstand harsh fluid and environmental conditions.

Q: What are the benefits of using a Twin Gear Pump for viscous fluids?

A: This pump offers efficient handling, reliable positive suction, low maintenance, and smooth operation even with highly viscous liquids, ensuring consistent performance and minimal downtime.
