S.S Rotary Gear Pump

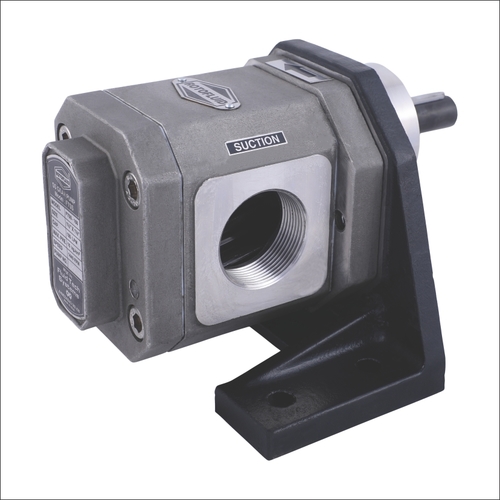

Name: S.S Rotary Gear Pump
Brand: FLUID TECH SYSTEMS

Get a Price/Quote

MOQ : 01 Piece

S.S Rotary Gear Pump Specification

Discharge Pressure
Up to 10 Bar

Voltage
220V / 415V AC

Flow Rate
10 LPM to 500 LPM

Theory
Rotary Gear Pump

Mounting Type
Baseplate Mounted

Max Suction
5 meters

Frequency
50 Hz / 60 Hz

Noise Level
Low

Working Temperature
-5C to 80C

Features
Corrosion Resistant, Leak Proof, Compact Design

Control System
Manual / Optional VFD

Caliber
Customizable as per application

Speed
Up to 1440 RPM

Inlet/Outlet
1/2 to 3 (BSP/NPT/Flanged)

Head Size
Up to 100 meters

Material
Stainless Steel (SS-304/316)

Structure
Horizontal foot mounting

Power
0.25 HP to 10 HP

Standard
ISO 9001:2015 Certified

Fuel Type
Electric Drive

Pressure
Max 10 Bar

Usage
Chemical, Food, Pharmaceutical, Oil Transfer

Application
Viscous Liquid Transfer, Loading & Unloading, Dosing

Suction Type
Positive Displacement

Seals Type
Mechanical Seal / Gland Packing

Priming
Self-Priming

Pump Type
Rotary External Gear Pump

Capacity
Up to 30 m/hr

Shaft Material
SS-316

Rotation
Clockwise / Counterclockwise

Bearing Type
Ball / Roller Bearing

Lubrication
Self Lubricating Gears

Body Finish
Polished / Matt

Viscosity Range
Up to 1,00,000 cst

Drive Option
Direct Coupled / Belt Driven

Impeller Type
N/A (Gear Based)

Bush Material
Teflon / Bronze / Carbon / Sintered Iron

Port Position
Side / Top

S.S Rotary Gear Pump Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About S.S Rotary Gear Pump

Fluid Tech Systems offer ROTOFLUID brand gear pump Model FTSS (SS Rotary Gear Pump) which is self priming, foot mounting type positive displacement rotary gear pump. Model FTSS having all Stainless Steel (SS-316) in three piece construction with investment cast.Due to three piece construction, it can be easily cleanable and maintainable that is why it is highly used in all kind of food industries. These pumps have SS-316 Gear and shaft that are nitrated to give long life and trouble free performance. The shaft is supported on self lubricating type PTFE coated DU Bushes and the sealing is done with PTFE based GFO pack sealant which gives zero leakage. The right angle mounting brackets facilitates foot mounting of the pump on base plate with Electric Motor of appropriate ratings. These pumps have sturdy design and construction for long trouble free service.

The suction and delivery connection are available in 1/4" to 2 1/2" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.33 LPM to 300 LPM flow capacity and has suction lift of 1m to 5m at rated speed of 1440 RPM. These pumps are designed up to maximum Viscosity to 1,00,000 SSU and maximum temperature up to 200^oC.

Product details

Frequency	50Hz
Model	FTSS
Voltage	220V
Material	SS
Brand	Rotofluid

Precision-Engineered for Versatile Applications

Ideal for transferring, dosing, and unloading a broad spectrum of viscous liquids, the S.S Rotary Gear Pump delivers superior performance in chemical, food, pharmaceutical, oil, and other industrial sectors. Its positive displacement operation ensures reliable self-priming, high suction up to 5 meters, and a range of flow rates (10500 LPM) with consistent discharge pressures. Customizable materials, port positions, and drive options cater to diverse process requirements.

Built to Withstand Challenging Environments

Constructed entirely from stainless steel (SS-304/316) and selected bush materials for compatibility, this durable pump is ISO 9001:2015 certified and engineered to withstand corrosive media and a wide array of working temperatures. Its corrosion-resistant finish, leak-proof design, and low noise make it suitable for continuous, trouble-free operation in demanding environments.

FAQs of S.S Rotary Gear Pump:

Q: How does the S.S Rotary Gear Pump handle high-viscosity fluids?

A: The pump is designed with precision-machined gears and robust materials, enabling it to efficiently manage fluids with viscosities up to 100,000 cst. Its positive displacement mechanism maintains consistent flow rates regardless of liquid thickness, making it ideal for viscous applications.

Q: What materials are used in the construction of this pump?

A: The main body and shaft are constructed from corrosion-resistant stainless steel (SS-304/316), while bush materials include Teflon, bronze, carbon, or sintered iron. This combination ensures compatibility with various chemicals and fluids, enhancing longevity and reliability.

Q: When is it best to use a mechanical seal versus gland packing in this pump?

A: Mechanical seals are recommended for applications requiring superior leak-proof performance and handling hazardous or valuable fluids. Gland packing can be selected where maintenance is more frequent or lower cost is needed. The pump accommodates both options to suit specific operational requirements.

Q: Where can this gear pump be installed in a process setup?

A: Thanks to its compact, baseplate-mounted, horizontal structure and multiple port positions (side or top), the pump can be integrated into existing lines for transfer, dosing, or unloading at various stages across chemical, food, and pharmaceutical processes.

Q: What is the process for commissioning and operating the pump?

A: Installation is straightforward due to its self-priming capability and flexible drive options (direct coupled or belt-driven). Once correctly aligned and connected, the pump requires minimal supervision; self-lubricating gears and user-selectable control options (manual or VFD) facilitate efficient and reliable operation.

Q: How does the pump ensure leak-proof performance?

A: With advanced sealing optionsmechanical seal or gland packingand precisely machined surfaces, the pump minimizes leakage. Its robust design and quality-tested manufacturing processes uphold ISO 9001:2015 standards to assure leak-proof and safe handling of liquids.

Q: What are the key benefits of using the S.S Rotary Gear Pump?

A: Users benefit from its corrosion resistance, customizable configurations, compact design, high pressure handling (up to 10 Bar), low noise levels, and suitability for a broad range of fluid viscosities. These features combine to offer reliable, efficient, and maintenance-friendly performance in demanding industrial environments.
