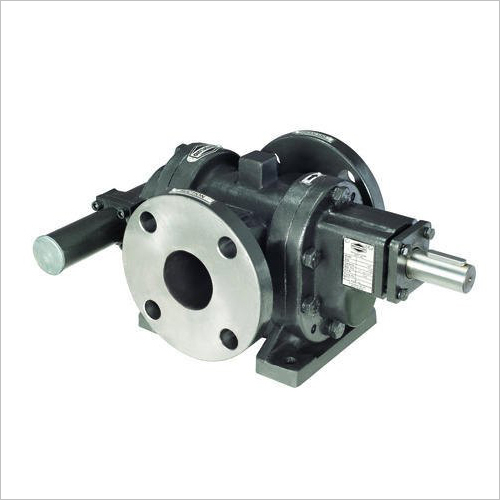

Name: Petroleum Gear Pump
Brand: FLUID TECH SYSTEMS
Price: 2500.00 INR
Availability: InStock

Price 2500.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Petroleum Gear Pump Specification

Mounting Type
Base Plate Mounted

Noise Level
Low

Speed
1440 RPM

Voltage
220-380 V

Theory
Rotary Pump

Head Size
Up to 80 meters

Inlet/Outlet
1 to 4 BSP/NPT

Caliber
Customized

Features
High efficiency, reliable sealing, easy maintenance

Flow Rate
15-500 LPM

Control System
Manual/Automatic

Discharge Pressure
Up to 10 Bar

Max Suction
Up to 5 meters

Working Temperature
-10C to 120C

Frequency
50 Hz / 60 Hz

Material
Cast Iron/Steel

Structure
Single Stage

Power
0.75 kW to 18.5 kW

Standard
ISI / ISO 9001

Fuel Type
Diesel, Petrol, Kerosene, Oil

Pressure
Up to 10 Bar

Usage
Petroleum transfer

Application
Filling stations, Oil transfer, Industrial lubrication

Suction Type
Positive Displacement

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Gear Pump

Capacity
15 to 30 m3/h

Shaft Material
Alloy Steel

Direction of Rotation
Clockwise/Counter-Clockwise

Coupling Type
Flexible or Rigid Coupling

Rotor Type
Helical/Spur Gear

Body Finish
Anti-corrosive coated

Net Weight
20-85 kg (varies by model)

Viscosity Range Supported
Up to 1500 cSt

Petroleum Gear Pump Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About Petroleum Gear Pump

Fluid Tech Systems offer ROTOFLUID brand gear pump Model FTRN/FTRB/FTRX (Rotary Twin Gear Pump - Molasses Gear Pump - Positive Displacement Gear Pump - External Gear Pump) Which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model FTRN/FTRB/FTRX having three piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which is help to increase life and performance of pump.

These pumps are having flange at the end of suction and delivery which are available in 1/2" to 6" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.30 LPM to 2083.00 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200^oC.

Pump Selection

Model FTRN/FTRB : The self lubricated needle roller bearing type Model FTRN used for clean viscous liquid having sufficient lubricating property such as clean lube oil, Gear oil, Animal oil, Fish oil, Hydraulic oil, Honey, Vegetable oil, SAE lubricating oil for continues duty, However for Intermittent duty Bush Bearing type pump Model FTRB used.

Model FTRX : This Model independent lubricated needle roller bearing type pump is suitable for handling of Crude oil, Dirty lube oil, HSD, Kerosene, LDO, Paints, Varnish, Wood Pulp, Liquid which have poor lubricant value.

Model FTRBJ : This Model should be selected for liquid which tends to solidify at room temperature such as Bitumen, Furnace oil, Asphalt, Tar, Starch, Molasses, Naptha, RFO, Silicate, Wax, Soap solution. Because This model have jacketing construction facilitate the heating the pump by steam or thermic fluid.

Product Details :

Model	FTRB
Material	MS
Brand	Rotofluid
Frequency	50Hz
Voltage	220V

Advanced Gear Technology for Reliable Performance

The pump utilizes precision-engineered helical or spur gears to deliver smooth, low-noise operation with consistent rotary motion. This design guarantees positive displacement, making it ideal for transferring petroleum-based liquids, even those with higher viscosity.

Versatile Configuration and Adaptability

Compatible with both flexible and rigid couplings, the petroleum gear pump supports various inlet and outlet specifications and customized calibers. It operates effectively in either clockwise or counter-clockwise directions, offering broad applicability across filling stations, industrial lubrication, and transfer systems.

Enhanced Durability and Safety

Featuring a strong cast iron or steel body finished with an anti-corrosive coating and an alloy steel shaft, the gear pump withstands demanding conditions. High-quality mechanical seals assure leak prevention, while compliance with ISI and ISO 9001 standards ensures safety and product reliability.

FAQs of Petroleum Gear Pump:

Q: How does the petroleum gear pump ensure reliable sealing and minimal leakage?

A: Equipped with high-grade mechanical seals and anti-corrosive coated components, the pump maintains reliable sealing under high pressure and various temperature conditions, preventing leaks and supporting low maintenance operations.

Q: What types of liquids can be transferred using this gear pump?

A: This gear pump is designed to efficiently handle petroleum-based liquids such as diesel, petrol, kerosene, and lubricating oil, even at high viscosities up to 1500 cSt.

Q: Where is the petroleum gear pump typically installed?

A: It is commonly installed in filling stations, oil transfer facilities, industrial lubrication systems, and other setups requiring precise and efficient petroleum transfer, either manually or automatically controlled.

Q: What is the pumps priming process, and why is self-priming beneficial?

A: The self-priming feature allows the pump to evacuate air from the lines and start transferring liquid without external assistance, simplifying operation and reducing setup time, especially when handling volatile fuels.

Q: When should you choose a flexible vs. rigid coupling for this pump?

A: Flexible couplings are preferred in systems requiring vibration isolation and alignment tolerance, while rigid couplings suit applications with precise alignment and stable mounting. Choose based on your sites installation conditions and operational requirements.

Q: What benefits does the anti-corrosive coating provide in pump longevity?

A: The anti-corrosive coating protects the pump body from rust, chemical exposure, and harsh operating environments, thereby increasing service life and ensuring dependable performance over time.

Q: How does the pump support efficient fuel transfer at varying pressures and flows?

A: Its positive displacement rotary mechanism, adjustable flow capacity (15-500 LPM), and compatibility with different voltages and frequencies enable efficient fuel transfer across a wide range of pressures (up to 10 Bar) and operational needs.
