Internal Twin Gear Pump

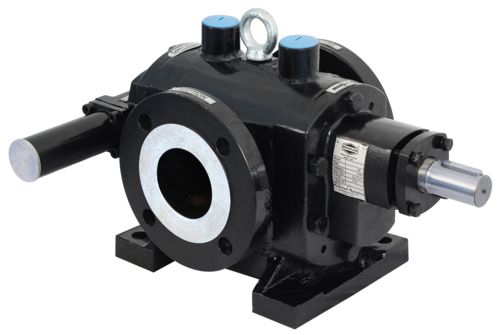

Name: Internal Twin Gear Pump
Brand: FLUID TECH SYSTEMS

Get a Price/Quote

MOQ : 01 Piece

Internal Twin Gear Pump Specification

Theory
External Gear Pump

Working Temperature
Up to 150C Celsius (oC)

Flow Rate
Up to 500 LPM

Discharge Pressure
Up to 10 Bar

Features
Robust Construction, Easy Maintenance, Corrosion Resistant

Mounting Type
Base Plate Mounted

Inlet/Outlet
1 to 6 BSP (or Flanged)

Speed
750 to 1800 RPM RPM

Noise Level
Low Noise Operation db

Control System
Manual/Automatic

Frequency
50 Hz / 60 Hz Hertz (HZ)

Max Suction
Up to 5 meters

Head Size
Up to 100 meters

Caliber
Customizable as per demand

Material
Cast Iron, Stainless Steel

Structure
Twin Gear

Power
Electric Motor Driven (0.5 HP to 50 HP)

Standard
ISO/CE certified

Pressure
Up to 10 Bar

Usage
Other

Application
Other

Suction Type
Positive Displacement

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Rotary Twin Gear

Capacity
Up to 30 m3/hr m3/hr

Duty Cycle
Continuous

Connection Type
Threaded/Flanged

Impeller Type
External Gear

Lubrication
Self-lubricating gears

Seal Options
Gland Packing/Mechanical Seal/Teflon Seal

Drive Type
Flange Mounted Electric Motor/Coupled

Direction of Rotation
Clockwise/Counterclockwise as required

Temperature Range
-10C to 150C

Rotation
Bi-directional

Viscosity Handling
Up to 1,00,000 cst

Internal Twin Gear Pump Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About Internal Twin Gear Pump

Fluid Tech Systems offer ROTOFLUID brand gear pump Model FTRN/FTRB/FTRX (Rotary Twin Gear Pump - Molasses Gear Pump - Positive Displacement Gear Pump - External Gear Pump) Which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model FTRN/FTRB/FTRX having three piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which is help to increase life and performance of pump.

These pumps are having flange at the end of suction and delivery which are available in 1/2" to 6" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.30 LPM to 2083.00 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200^oC.

Pump Selection

Model FTRN/FTRB : The self lubricated needle roller bearing type Model FTRN used for clean viscous liquid having sufficient lubricating property such as clean lube oil, Gear oil, Animal oil, Fish oil, Hydraulic oil, Honey, Vegetable oil, SAE lubricating oil for continues duty, However for Intermittent duty Bush Bearing type pump Model FTRB used.

Model FTRX : This Model independent lubricated needle roller bearing type pump is suitable for handling of Crude oil, Dirty lube oil, HSD, Kerosene, LDO, Paints, Varnish, Wood Pulp, Liquid which have poor lubricant value.

Model FTRBJ : This Model should be selected for liquid which tends to solidify at room temperature such as Bitumen, Furnace oil, Asphalt, Tar, Starch, Molasses, Naptha, RFO, Silicate, Wax, Soap solution. Because This model have jacketing construction facilitate the heating the pump by steam or thermic fluid.

Product details

Model	FTRN/FTRB/FTRX
Material	MS
Brand	Rotofluid
Frequency	50Hz
Voltage	220V

Versatile Viscosity Handling

Designed to handle viscosities up to 100,000 cst, the Twin Gear Pump excels in applications requiring the transfer of thick liquids such as oils, chemicals, syrups, and lubricants. Its positive displacement suction ensures consistent and efficient movement of media, making it especially suitable for challenging industrial requirements.

Customizable and Corrosion Resistant

With options in cast iron and stainless steel, polished or epoxy-painted finish, and multiple seal types, this pump is tailored for diverse operational environments. It offers customizable inlet/outlet sizes and mounting types, ensuring compatibility with unique process setups and resistance against corrosive substances.

Energy Efficient and Low Noise Operation

Driven by flange-mounted electric motors ranging from 0.5 HP to 50 HP, the Twin Gear Pump operates quietly within a wide speed range. It provides up to 30 m/hr capacity and maintains discharge pressures up to 10 bar, delivering reliable and energy-conscious performance suitable for manual or automatic control systems.

FAQs of Twin Gear Pump:

Q: How does the Twin Gear Pump accommodate different liquid viscosities?

A: The pump is engineered to handle viscosities up to 100,000 cst, thanks to its external gear impeller and positive displacement design. This ensures smooth and efficient transfer of everything from thin fluids to highly viscous liquids in various industries.

Q: What are the available seal options for this pump, and how do they benefit industrial applications?

A: You can choose from gland packing, mechanical seal, or Teflon seal options. These seals improve leak prevention and compatibility with different process fluids, enhancing uptime and reducing maintenance for industrial, chemical, and food-grade applications.

Q: When should I select a threaded versus a flanged connection type for installation?

A: Threaded connections are ideal for smaller, lower-pressure applications, whereas flanged connections are recommended for larger pipelines and higher pressure setups due to their enhanced sealing and ease of maintenance.

Q: Where can the Twin Gear Pump be installed for optimal performance?

A: It can be base plate mounted in industrial settings such as chemical plants, oil refineries, food processing facilities, and pharmaceutical units. The pumps design supports both manual and automatic control, allowing flexible integration into new or existing systems.

Q: What is the process for customizing the pump caliber or material for my specific needs?

A: Customization is available to fit your required inlet/outlet sizes, body material (cast iron or stainless steel), and seal options. Discuss your process parameters and operational requirements with the distributor or manufacturer to receive a solution tailored to your application.

Q: How does the pumps bi-directional rotation enhance operational versatility?

A: Bi-directional rotation (clockwise or counterclockwise) allows for flexible flow direction, which supports varying process sequences or system configurations. This adaptability helps reduce downtime during system changes or maintenance.

Q: What main benefits does the Twin Gear Pump offer to industrial users?

A: Key benefits include robust construction, easy maintenance, corrosion resistance, low noise operation, continuous-duty cycle, and compliance with ISO/CE certifications, ensuring reliable long-term performance in demanding environments.
