Our Products

Gear Pumps

Industrial Pumps

Lubrication Oil Gear Pump

Rotary Twin Gear Pump

Rotary Twin Gear Pump

Rotary Gear Oil Pump

Positive Displacement Pumps

Lubrication Gear Pump (Monoblock)

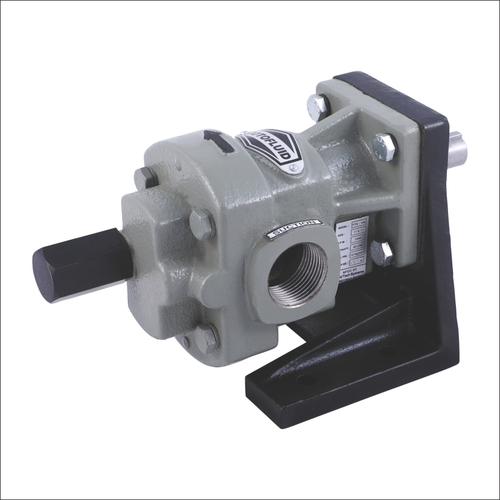

Name: Lubrication Gear Pump (Monoblock)
Brand: FLUID TECH SYSTEMS
Price: 2500.00 INR
Availability: InStock

Price 2500.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Lubrication Gear Pump (Monoblock) Specification

Speed
1440 RPM

Voltage
230V / 415V AC (single or three phase)

Head Size
Up to 25 meters

Working Temperature
Up to 80C

Mounting Type
Flange / Foot Mounted

Theory
Rotary Gear Pump

Flow Rate
2 LPM to 50 LPM

Inlet/Outlet
1/2 BSP (female)

Features
Rugged construction, easy maintenance, leak-proof design

Max Suction
Up to 5 meters

Caliber
Standardized as per model

Discharge Pressure
Up to 10 bar

Noise Level
Low noise operation

Control System
Manual / Automatic (optional)

Frequency
50 Hz

Material
Cast Iron / Stainless Steel

Structure
Monoblock, compact design

Power
0.25 HP to 2 HP

Standard
ISI / CE Marked

Fuel Type
Oil

Pressure
Up to 10 bar

Usage
Lubrication Systems

Application
Industrial lubrication, oil transfer

Suction Type
Positive Suction

Seals Type
Mechanical Seal

Priming
Self-Priming

Pump Type
Lubrication Gear Pump

Capacity
2-50 LPM (as per model)

Weight
Approx. 8-20 kg (as per model)

Direction of Rotation
Clockwise (CW)

Drive Type
Direct coupled electric motor

Body Finish
Powder coated / painted

Connection Size
Customized options available

Viscosity Range
Up to 1000 cSt

Protection Class
IP55

Lubrication Gear Pump (Monoblock) Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

About Lubrication Gear Pump (Monoblock)

Fluid Tech Systems offer ROTOFLUID brand gear pump Model (Gear Pump, Lubrication Oil Gear Pump) which is most efficient and economic range of flange and foot mounting type positive displacement rotary gear pump. Model FTX having Single helical shrink fitted gear pair and hardened and grind finished shaft. Ultra bronze sintered bushes ensured smooth running. It is perfectly designed and construction which increase life of pump and performance of pump.

The suction and delivery connections are available in 1/4" to 1 12" size. These pumps can be operated up to pressure of 10 kg/cm with 2.5 LPM to 125 LPM flow capacity. These pumps are designed to run at 1440 RPM and suitable liquid up to viscosity of 1,00,000 SSU and maximum temperature up to 200oC.
FTX Mono block pump

Simple and compact designs of Mono block pumps are available in this model.
Mono block version is very easy to portable one to another place and it does not required to align every time when coupled with electric motor. Mono block version save space and reduces down time.

Product Details

Model	FTX
Material	MS
Brand	Rotofluid
Motor Horsepower	3 HP
Motor Speed	2000 RPM
Discharge	150-200 LPH

Reliable Solution for Lubrication Needs

This monoblock gear pump has been engineered for a wide range of lubrication and oil transfer applications in industries. Its rugged build and powder-coated finish ensure durability and corrosion resistance even in demanding environments, while its compact structure allows for easy installation and flexible mounting. High self-priming capability and positive suction make it ideal for systems requiring consistent lubricating flow.

Versatile Performance and Configuration

Offering a broad viscosity range (up to 1000 cSt) and adjustable flow rates (2 to 50 LPM), this pump suits various fluids and operational demands. Multiple voltage and mounting options (flange or foot) make it adaptable to different setups. Mechanical seals and leak-proof design enhance reliability, while the low-noise, low-maintenance operation minimizes downtime. Custom connection sizes and strict adherence to ISI/CE standards make it suitable for both new and existing systems.

FAQs of Lubrication Gear Pump (Monoblock):

Q: How does the lubrication gear pump achieve self-priming and positive suction?

A: This lubrication gear pump utilizes a rotary gear mechanism that enables self-priming and positive suction. It can reliably draw oil from depths of up to 5 meters without the need for pre-filling, making it especially suitable for systems where consistent startup and reliable fluid transfer are critical.

Q: What are the installation options and how is the pump typically mounted?

A: The pump offers flexibility in installation, allowing flange or foot mounting depending on your system requirements. It is compactly designed and can be easily integrated into existing lubrication or oil transfer setups, supporting both manual and optional automatic control systems for efficient operation.

Q: When should I choose a cast iron versus stainless steel body for the pump?

A: Cast iron models are generally preferred for standard lubrication oil transfer where corrosion risk is minimal and cost efficiency is important. Stainless steel options are recommended in environments with higher corrosion risks or when handling more aggressive fluids, ensuring longer service life and consistent performance.

Q: Where can this gear pump be utilized within an industrial setting?

A: This pump is ideal for lubrication systems, oil transfer operations, and other fluid handling needs in industrial plants. Its standardized configuration and compliance with ISI/CE marks make it suitable for new installations or as a retrofit component in existing systems, particularly where high reliability and low maintenance are required.

Q: What benefits does the monoblock structure provide in comparison to assembled pumps?

A: The monoblock structure ensures greater compactness, reduced leakage risks, and simplified installation. Fewer components mean there is less chance of mechanical failure, resulting in lower maintenance and higher operational uptime for critical lubrication and transfer systems.

Q: How does the pump ensure safe and reliable operation in various working environments?

A: Equipped with IP55 protection and available in both single and three-phase models (230V/415V AC), the pump is engineered to withstand harsh industrial conditions. Its powder-coated or painted finish aids in corrosion resistance, while the mechanical seal and low-noise operation add extra layers of operational safety and comfort.
