Internal Jacketed Gear Pump

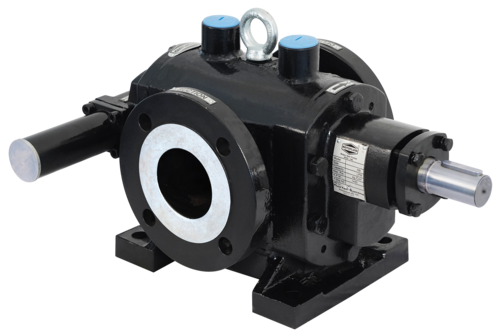

Name: Internal Jacketed Gear Pump
Brand: FLUID TECH SYSTEMS

Get a Price/Quote

MOQ : 01 Piece

Internal Jacketed Gear Pump Specification

Voltage
415 V Volt (v)

Max Suction
Up to 5 meters

Theory
Rotary Positive Displacement

Noise Level
Below 70 dB db

Working Temperature
-10C to 200C Celsius (oC)

Speed
Up to 1440 RPM RPM

Mounting Type
Base Plate Mounted

Head Size
Up to 100 meters

Discharge Pressure
Up to 10 bar

Caliber
Standard / Custom

Flow Rate
Up to 500 LPM

Inlet/Outlet
1 to 6 (Flanged/Threaded)

Frequency
50 Hz / 60 Hz Hertz (HZ)

Control System
Manual / Automatic

Features
Heating jackets for handling high viscosity or temperature-sensitive liquids

Material
Cast Iron / Stainless Steel / Alloy Steel

Structure
Single Stage, Jacketed body and cover

Power
0.5 HP to 50 HP

Standard
ISO 9001

Fuel Type
Electric

Pressure
Up to 10 bar

Usage
Other

Application
Other

Suction Type
Positive Suction

Seals Type
Mechanical Seal / Gland Packing

Priming
Self Priming

Pump Type
Jacketed Gear Pump

Capacity
Up to 30,000 LPH Ltr/hr

Heating Media
Hot water, steam, or oil

Rotation Direction
Clockwise (Standard) / Anti-clockwise (Optional)

Body Coating
Anti-corrosion coated

Viscosity Range
Up to 100,000 cSt

Impeller Type
Gear-type

Surface Finish
Painted / Coated / Polished

Connection Type
Threaded or Flanged

Maintenance
Low maintenance requirement

Internal Jacketed Gear Pump Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
3-5 Days

Main Domestic Market
All India

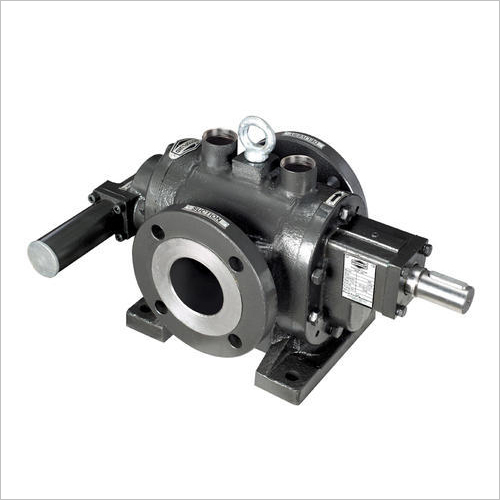

About Internal Jacketed Gear Pump

Fluid Tech Systems offer ROTOFLUID brand gear pump Model FTRN/FTRB/FTRX (Rotary Twin Gear Pump - Molasses Gear Pump - Positive Displacement Gear Pump - External Gear Pump) Which is heavy duty foot mounting type positive displacement rotary twin gear pump. Model FTRN/FTRB/FTRX having three piece construction it can be easily cleanable and maintainable. These pumps having a double helical refined gear and hardened grind finished shaft, double helical gear prevent axial load & side thrust which is help to increase life and performance of pump.

These pumps are having flange at the end of suction and delivery which are available in 1/2" to 6" size. These pumps can be operated up to pressure of 10 kg/cm2 with 8.30 LPM to 2083.00 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200oC

Pump Selection

Model FTRN/FTRB : The self lubricated needle roller bearing type Model FTRN used for clean viscous liquid having sufficient lubricating property such as clean lube oil, Gear oil, Animal oil, Fish oil, Hydraulic oil, Honey, Vegetable oil, SAE lubricating oil for continues duty, However for Intermittent duty Bush Bearing type pump Model FTRB used.

Model FTRX : This Model independent lubricated needle roller bearing type pump is suitable for handling of Crude oil, Dirty lube oil, HSD, Kerosene, LDO, Paints, Varnish, Wood Pulp, Liquid which have poor lubricant value.

Model FTRBJ : This Model should be selected for liquid which tends to solidify at room temperature such as Bitumen, Furnace oil, Asphalt, Tar, Starch, Molasses, Naptha, RFO, Silicate, Wax, Soap solution. Because This model have jacketing construction facilitate the heating the pump by steam or thermic fluid.

Product details

Size	1/2 x 1/2
Max Flow Rate	2080 LPM
Brand	Roto Fluid
Model	FTRBJ
Material	MS

Versatile Compatibility for High-Viscosity Media

This jacketed gear pump is ideal for industries dealing with highly viscous or temperature-sensitive products. Thanks to its heating capability, it effectively handles substances such as bitumen, syrup, molasses, chocolate, and specialty oils, ensuring optimal flow and process continuity. Its ability to maintain product temperature during transfer protects material quality and process efficiency.

Flexible Installation and Easy Maintenance

Available with both threaded and flanged connections, the pump supports straightforward installation across diverse operational environments. Its self-priming nature, positive suction design, and low maintenance requirements minimize downtime, enabling reliable operation. The ball and roller bearing options, paired with durable body coatings, enhance service life and resist corrosion.

Precision Performance and Operational Safety

Featuring a single-stage, rotary positive displacement mechanism, this pump delivers flow rates up to 30,000 LPH and heads up to 100 meters. With a low noise level under 70 dB and clear options for manual or automatic control systems, operators benefit from a safe, user-friendly, and energy-efficient solution, suitable for continuous industrial transfer applications.

FAQs of Jacketed Gear Pump:

Q: How does the heating jacket enhance the operation of the Jacketed Gear Pump?

A: The heating jacket allows for circulation of hot water, steam, or oil around the pump body, ensuring that high-viscosity or temperature-sensitive liquids remain fluid during transfer. This prevents clogging, promotes smooth flow, and protects product integrity throughout the pumping process.

Q: What types of liquids can this gear pump handle effectively?

A: This pump is specifically designed for viscous materials up to 100,000 cSt, including bitumen, molasses, chocolate, syrup, soap, and a variety of oils. The jacketed design and anti-corrosion coating make it suitable for challenging industrial fluids that require precise temperature control.

Q: When is it beneficial to use a jacketed gear pump instead of a standard gear pump?

A: A jacketed gear pump is ideal in scenarios where the liquid being transferred is highly viscous or temperature-sensitive. The jacketed feature is essential when maintaining or elevating temperature is necessary to reduce viscosity, such as with bitumen, chocolate, or heavy oils, ensuring continuous and efficient flow.

Q: Where can this jacketed gear pump be installed within industrial operations?

A: The pump can be base plate mounted and is suitable for installations in various sectors, including chemical processing plants, refineries, food manufacturing units, and facilities handling specialty fluids. Flexible connection options (threaded or flanged) further enhance its adaptability to existing systems.

Q: What is the process for maintaining this gear pump, and how frequently is servicing required?

A: Thanks to its robust design with ball or roller bearings and high-quality seals, the pump requires minimal maintenance. Regular checks of the bearing lubrication, seal integrity, and heating jacket connections are recommended, but overall servicing intervals are less frequent compared to conventional pumps.

Q: How does the positive displacement mechanism benefit the user?

A: The rotary positive displacement mechanism ensures a consistent, pulsation-free flow, regardless of changes in pressure or viscosity. This makes the pump reliable for delicate or precise transfer tasks, allowing for accurate dosing and reducing the risk of product loss or process interruptions.
